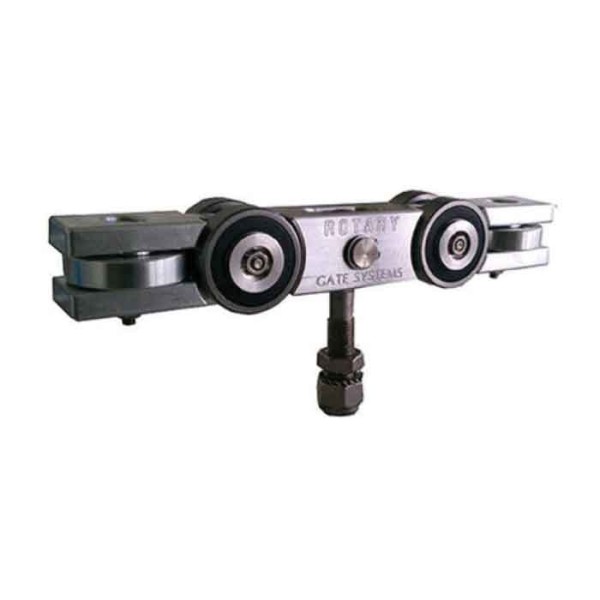

DuraGates Medium 6-Wheel Carriage Body for 2 1/8" Sq. Enclosed Track (Aluminum) - Cantilever Sliding Gate Hardware
Details

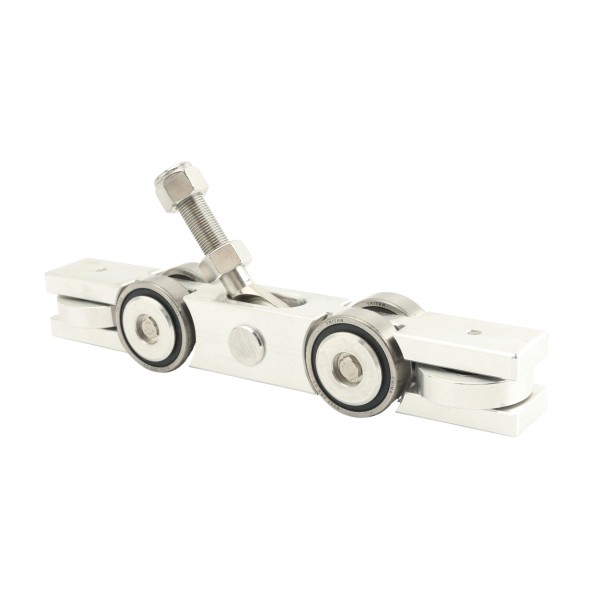

DuraGates Medium 6-Wheel Carriage Body for 2 1/8" Sq. Enclosed Track (Aluminum) - Cantilever Sliding Gate Hardware
With a load rating of 2,700 lbs, this 6-wheel carriage body is great for lighter duty commercial or industrial gates. Using 6061-T6511 aircraft grade aluminum, this carriage uses 2 1/8" wheels and an easy screw on design for simple setups.
Specifications:
- Made from 6061-T6511 Aircraft Grade Aluminum
- Corrosion Resistant
- Sealed Roller Bearings
- Captured Bearings (not pressed on) with retainers to better protect bearing seals
- Stainless Steel Hardware
- Billet 6061-T6511 Side Rollers (not cast aluminum or plastic)
- Sealed Captured Bearing in Side Rollers
- Stainless Steel Mounting Assembly Rod
- Fits 2 1/8" x 2 1/2" gate track
| SKU | TA-100 |
|---|---|
| Part Type | Carriage |
| Wheel Width | 2 1/8" |
| Material | Aluminum |
| Mount Type | Screw-On |
| Max Gate Weight | 2700 lbs |
| Compatible Track H x W | 2-1/8" x 2-1/2" |
| Manufacturer | DuraGates / Comunello Gate |
| Data Sheet | Download PDF file |
