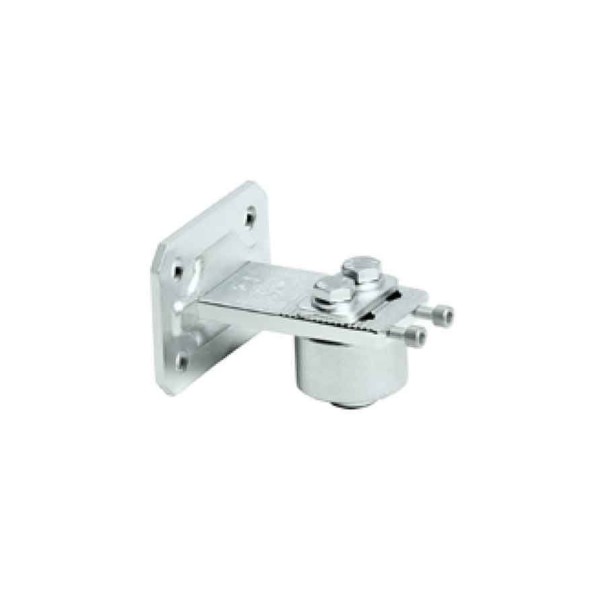

1 7/8" DuraGates Adjustable Upper Hinge - 85PST-M

When the gate leaf is heavy and standard upper hinges shear or bend, this 1 7/8" adjustable upper hinge brings oversized pivot strength to the rescue. Its threaded body lets you lift or drop the gate corner to compensate for hinge wear, seasonal warp, or concrete settlement. The large pin diameter resists lateral shear from wind gusts and impact forces that destroy smaller hardware. Mounted at the frame top, it completes a robust swing axis when paired with a thrust-bearing pintle below. For commercial and monumental gates, it is the tuning dial that keeps everything plumb.

Features

• Large 1-7/8" pin resists heavy-gate shear loads
• Threaded barrel adjusts to cure sag and frame warp
• Broad plate spreads top-frame torsion for stability
• Pairs with thrust-bearing bottom hinges for robust swing axis

Specifications

• Pin Diameter: 1 7/8"
• Type: Adjustable upper hinge
• Adjustment Range: Vertical
• Application: Swing gates
