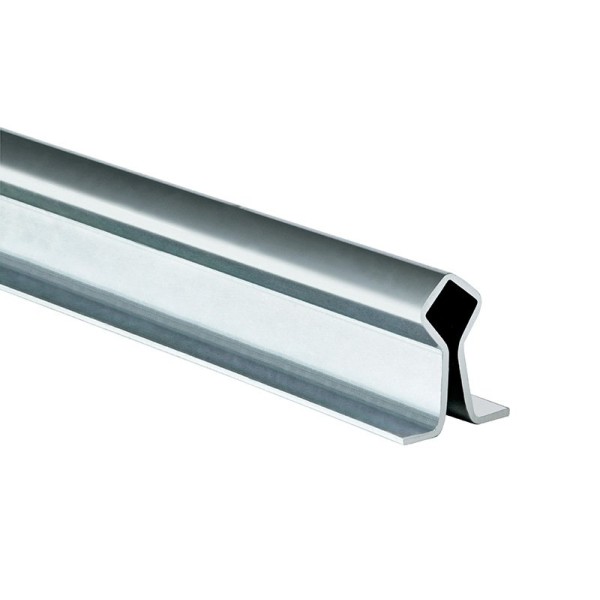

DuraGates Galvanized V-Track 19' 8" Long - 2 3/8" Height 292-20FT

This section of galvanized v-groove track can be used for rolling gates, but it must be cemented in place. This bar measures around 19.68'.
Part Number: 292-20FT
$258.80 each
$258.80 each
OR

Details

DuraGates Galvanized V-Track 19' 8" Long - 2 3/8" Height 292-20FT

Engineered for long-span rolling gate installations, this 19' 8" galvanized steel V-track provides a stable and corrosion-resistant path for gates utilizing V-Groove, V-joined, or Y-shaped wheels. Its extended length reduces the need for joints, creating smoother travel over the entire gate span. The track is meant to be set in concrete for maximum stability and long-term use. Please note that installation plugs are not included with this track section.

Features

  • Extra-long galvanized steel track for large rolling gates
  • To be installed in concrete for maximum strength
  • Supports V-Groove, V-joined, and Y-type gate wheels
  • Resists weathering and corrosion

Specifications

  • Length: 19.68 feet (6 meters)
  • Height: 2 3/8 inches
  • Material: Galvanized steel
  • Installation: Cement-in

Track Material Comparison

Material Length Range Gate Opening / Weight Mount Best For
Galvanized Steel 6-10 ft Up to appox. 26ft / appox. 1,700lb Bolt-on or Weld Residential & commercial gates
Galvanized Steel 10-20 ft Up to appox. 59ft / appox. 4,000lb Bolt-on or Weld Long/heavy gates or high-traffic areas
Stainless Steel 10-20 ft Up to appox. 26ft / appox. 700lb Bolt-on Coastal or corrosive environments
Aluminum 10-20 ft Up to appox. 20ft / appox. 600lb Bolt-on Lightweight gates, low-maintenance needs
