Details

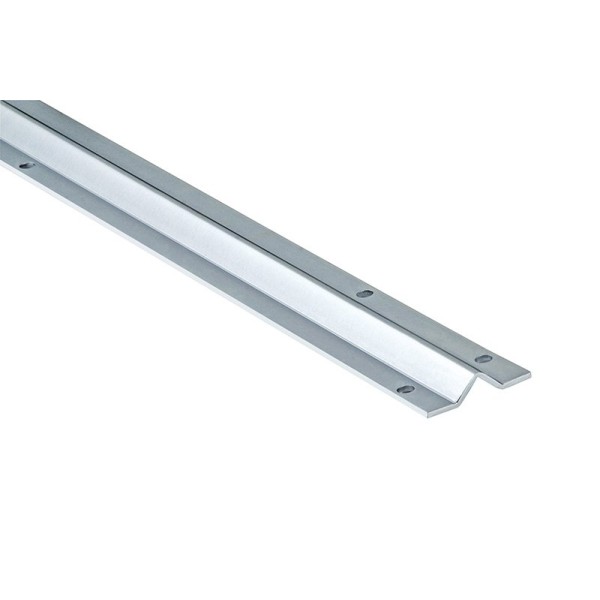

DuraGates Galvanized V-Track 9' 10" Long - 2 1/8" Wide 1/8" Thick 293-10FT
The DuraGates 9' 10" Galvanized V-Track offers a bolted installation alternative for rolling gate systems that require surface mounting rather than embedded tracks. Built from galvanized steel, this track accommodates multiple wheel types including V-Groove and V-joined configurations. Its width and thickness make it suitable for residential or light commercial gates. While compatible with special installation plugs, these must be purchased separately.
Features
- Surface-mount galvanized V-track for bolt-down installation
- Compatible with V-Groove, V-joined, and Y wheels
- Galvanized finish for resistance to the elements
- Suitable for residential or light commercial use
Specifications
- Length: 9.84 feet (3 meters)
- Width: 2 1/8 inches
- Thickness: 1/8 inch
- Material: Galvanized steel
- Installation: Bolt-down
Track Material Comparison
| Material |
Length Range |
Gate Opening / Weight |
Mount |
Best For |
| Galvanized Steel |
6-10 ft |
Up to appox. 26ft / appox. 1,700lb |
Bolt-on or Weld |
Residential & commercial gates |
| Galvanized Steel |
10-20 ft |
Up to appox. 59ft / appox. 4,000lb |
Bolt-on or Weld |
Long/heavy gates or high-traffic areas |
| Stainless Steel |
10-20 ft |
Up to appox. 26ft / appox. 700lb |
Bolt-on |
Coastal or corrosive environments |
| Aluminum |
10-20 ft |
Up to appox. 20ft / appox. 600lb |
Bolt-on |
Lightweight gates, low-maintenance needs |
