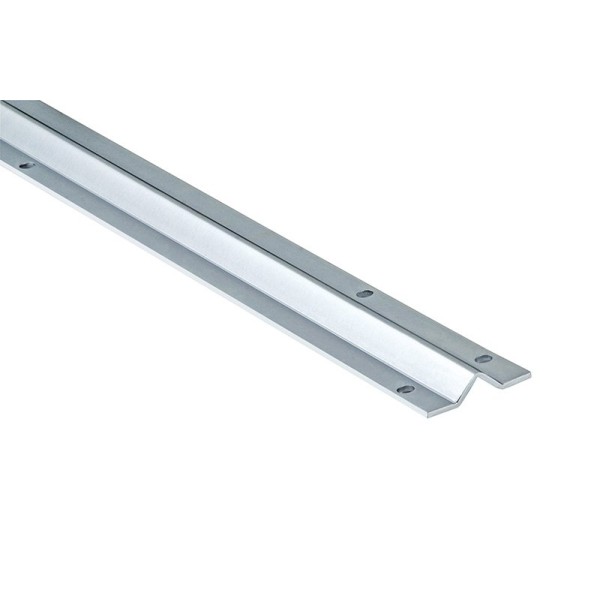

DuraGates Galvanized V-Track 19' 8" Long - 2 1/8" Wide 1/8" Thick 293-20FT

This section of galvanized v-groove track is for use with rollings gates that will be bolted in place. This bar measures around 19.68'.
Part Number: 293-20FT
$121.49 each
$121.49 each
OR

Details

DuraGates Galvanized V-Track 19' 8" Long - 2 1/8" Wide 1/8" Thick 293-20FT

Designed for bolt-down installation, the DuraGates 19' 8" Galvanized V-Track offers full-length coverage for gates that require a surface-mounted track system. It's made from galvanized steel and fits a variety of gate wheel styles, including V-Groove and Y. The 2 1/8" width and 1/8" thickness allow it to support extended spans with a solid contact surface. For proper mounting, special plugs are necessary but not included.

Features

  • Extended-length V-track for bolt-down gate applications
  • Constructed from galvanized steel for outdoor use
  • Works with V-Groove, V-joined, and Y wheels
  • Ideal when concrete embedment isn't practical

Specifications

  • Length: 19.68 feet (6 meters)
  • Width: 2 1/8 inches
  • Thickness: 1/8 inch
  • Material: Galvanized steel
  • Installation: Bolt-down

Track Material Comparison

Material Length Range Gate Opening / Weight Mount Best For
Galvanized Steel 6-10 ft Up to appox. 26ft / appox. 1,700lb Bolt-on or Weld Residential & commercial gates
Galvanized Steel 10-20 ft Up to appox. 59ft / appox. 4,000lb Bolt-on or Weld Long/heavy gates or high-traffic areas
Stainless Steel 10-20 ft Up to appox. 26ft / appox. 700lb Bolt-on Coastal or corrosive environments
Aluminum 10-20 ft Up to appox. 20ft / appox. 600lb Bolt-on Lightweight gates, low-maintenance needs
