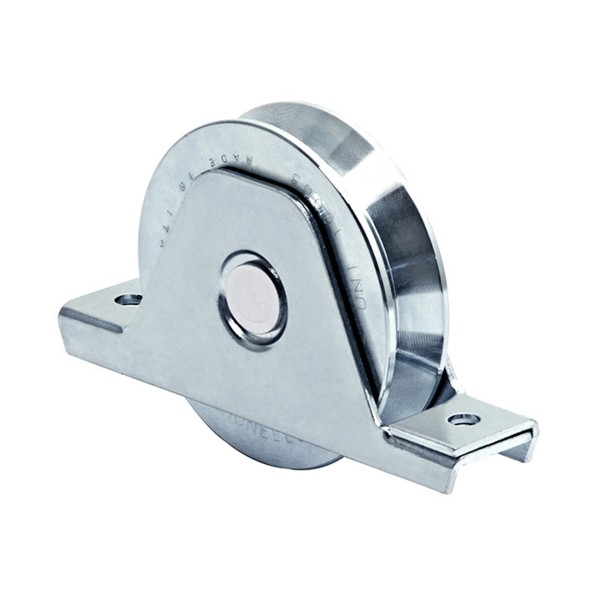

DuraGates Galvanized 6" Recessed Mount V-Groove Wheel 1 1/4" Wide .336V-160

This 6 inch V-groove wheel features a recessed mounting plate and a 1-1/4 inch wide galvanized profile for smooth gate travel. It includes two bearings and supports up to 1410 lbs per wheel.
Part Number: 336V-160
$78.26 each
$78.26 each
OR


Details

DuraGates Galvanized 6" Recessed Mount V-Groove Wheel 1 1/4" Wide .336V-160

Designed for sliding gate applications, this DuraGates 6" Galvanized Steel V-Groove Wheel is built for strength, stability, and long-term performance. Featuring a recessed mount plate and dual-bearing configuration, it offers smooth, quiet motion and can handle up to 1410 pounds per wheel. The 1-1/4" wide tread is compatible with standard V-track systems, making this wheel an ideal solution for medium to heavy-duty gate installations. Hot-dip galvanization enhances its corrosion resistance, providing excellent durability in outdoor or high-moisture environments. Easily installable with screws or bolts, this wheel integrates seamlessly with your existing sliding gate hardware.

Features:

  • 6" V-Groove wheel with recessed mounting plate
  • Dual-bearing design ensures smoother and quieter performance
  • 1-1/4" wide tread fits most V-track rail systems
  • Hot-dip galvanized for increased corrosion resistance
  • Supports up to 1410 pounds per wheel

Specifications:

  • Wheel Diameter: 6 inches
  • Tread Width: 1-1/4 inches
  • Mounting Style: Recessed Plate
  • Bearings: Two
  • Material: Galvanized Steel
  • Load Capacity: 1410 lbs per wheel

Wheel Comparison Chart:

Wheel Model Wheel Model Overview Compatible Track Series
300V-100 / 305V-100 / 325V-100 / 335V-100 4" wheels, 7/8" or 1 1/8" groove widths (surface or recessed) CGS-345P (large galvanized track) and CGS-245P (medium) depending on carriage size
300V-160 / 305V-160 / 336V-160 / 339V-160 6" or twin-wheel 4 3/4"/6" wheels, wider grooves (1" to 1 1/4") CGS-345P.or CGS-350.5 series (if heavy or extra-large)
326V-100 / 336V-100 4" wheels recessed mount, widths 1 1/8" to 15/16" Typically CGS-345P or overlapping series depending on carriage build configuration
339V-120 / 339V-160 Twin-wheel surface mount with bearings and grease zerk Commonly used in Large Carriage CGS-345P applications (e.g. heavy gates)
4C Overhead trolley, sealed bearing system (not standard V-groove) Matches to medium "P" series tracks (e.g. CGS-345P or CGS-245P) on installations requiring overhead trolleys
322V-200-C-44 / 322V-200 8" wheels with grease zerk, 1 1/2" wide Intended for XL or 350.5 series galvanized/aluminum tracks, such as CGS-350.5XL or heavy-duty cantilever rails
Prefer to Call? (888) 378-1291

Questions about part number 336V-160?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 336V-160
Wheel Width 1 1/4"
Wheel Size 6"
Product Type Single Wheel
Material Galvanized Steel
Mount Type Recessed
Specification Sheet Download PDF file
