DuraGates Bottom Track for CGA-350.5P - 9'10" Long - 4 3/16" W x 4 1/32" H CGA-345P-9.84FT
Details
DuraGates Bottom Track for CGA-350.5P - 9'10" Long - 4 3/16" W x 4 1/32" H CGA-345P-9.84FT

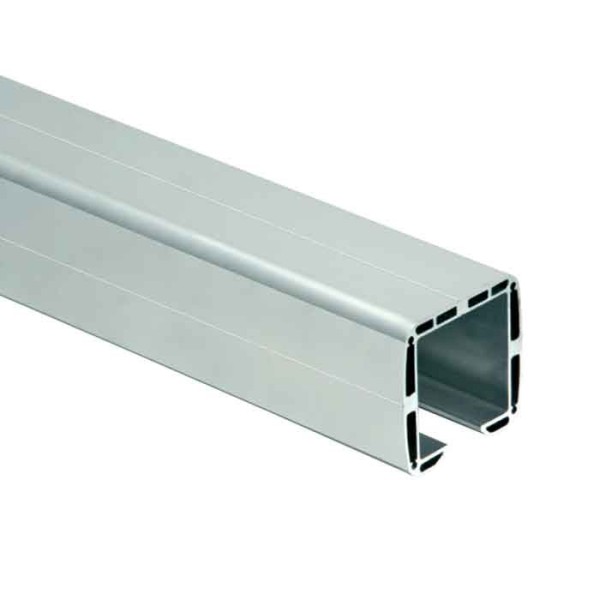

The DuraGates Bottom Track is engineered exclusively for the CGA-350.5P cantilever gate assembly, offering dimensional compatibility and functional stability. At 9 feet 10 inches long and made from aluminum, it provides a lightweight yet structurally sound path for gate carriage travel. The unique profile helps prevent operational issues often encountered with traditional sliding gates. Its role in the overall system is essential for reducing friction, minimizing wear, and ensuring smoother motion over time.
Features
- Specifically made for the CGA-350.5P cantilever system
- Helps eliminate common sliding gate maintenance issues
- Aluminum material offers light weight and strength
- Designed for enhanced gate carriage guidance
Specifications
- Length: 9 feet 10 inches (3 meters)
- Width: 4 3/16 inches
- Height: 4 1/32 inches
- Material: Aluminum
Track Material Comparison
| Material | Length Range | Gate Opening / Weight | Mount | Best For |
|---|---|---|---|---|
| Galvanized Steel | 6-10 ft | Up to appox. 26ft / appox. 1,700lb | Bolt-on or Weld | Residential & commercial gates |
| Galvanized Steel | 10-20 ft | Up to appox. 59ft / appox. 4,000lb | Bolt-on or Weld | Long/heavy gates or high-traffic areas |
| Stainless Steel | 10-20 ft | Up to appox. 26ft / appox. 700lb | Bolt-on | Coastal or corrosive environments |
| Aluminum | 10-20 ft | Up to appox. 20ft / appox. 600lb | Bolt-on | Lightweight gates, low-maintenance needs |
