DuraGates Small 8-Wheel Carriage Multi-Plate Body CGS-250.8M (Steel) - Cantilever Sliding Gate Hardware
Details
DuraGates Small 8-Wheel Carriage Multi-Plate Body CGS-250.8M (Steel) - Cantilever Sliding Gate Hardware

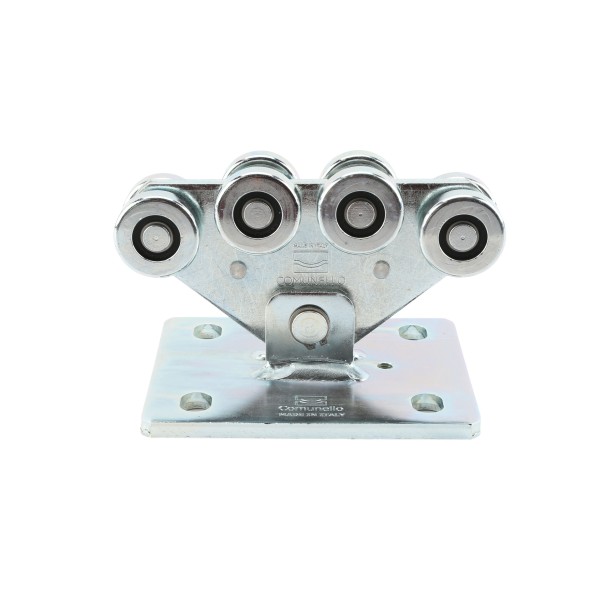

The CGS-250.8P Small Carriage Multi-Plate Body sports eight wheels and features durable pivots that allow for increased weight capacity, smooth rolling and extra stability. Forged from highly durable steel, it's designed for smaller commercial and industrial applications and can hold up a cantilever gate weighing up to 900 lbs. and with an opening of 13 ft. It comes with four pre-drilled holes for easy installation and will quickly become a trusted component of your cantilever gate system.
Features:
- Four Pre-Drilled Holes For Installation
- Low Maintenance, Easy To Install Design
- Durable For Even High Traffic Application
- Weight Capacity For Small Gates Up To 1300 lbs
- Designed For Medium To Large, Professional Grade Gates
- Long-Lasting, Weather Resistant Steel Multi-Plate Body
- More Cost Effective Than Traditional Cantilever Hardware
- Small-Duty 8-Wheel Carriage Works With Any Gate Material
- Large Pivots Allow For Increased Weight Capacity, Smooth Rolling And Extra Stability
Specifications:
- Wheels: 8
- Width: 8.34"
- Height: 5.19"
- Material: Steel
- Max. Gate Opening: 19'
- Max. Gate Weight: 1,300 Lbs.
Carriage Comparison Chart
| Wheel Count | Material | Compatible Gate Size / Weight | Compatible Track Size | Recommended Installation |
|---|---|---|---|---|
| 5-Wheel | Aluminum + Nylon | Light residential, appox. 450kg | Small | Quiet, corrosion-resistant; great for short gates |
| Steel | Light to medium, appox. 450-600kg | Small | Budget-friendly; compact installs | |
| Stainless Steel | Medium-duty, appox. 600kg | Medium | Corrosion-proof; ideal for outdoor coastal areas | |
| Steel (XL variant) | Large gates, appox. 800kg+ | XL | For wide or high wind-load gates | |
| 8-Wheel | Steel | Medium-large, appox. 600-900kg | Medium / Large | Most common setup; smooth ride over longer spans |
| Steel + Drive Unit | Automated gates, small-large | Small / Medium / Large | Integrated motor drive saves setup time | |
| 9-Wheel | Galvanized Steel | Extra-large gates, appox. 1,800-2,000kg | XL | Ultimate stability; long commercial gates over 30ft |
| SKU | CGS-250.8M |
|---|---|
| Part Type | Carriage |
| Material | Aluminum |
| Max Gate Weight | 900 lbs |
| Compatible Track H x W | 2-3/4" x 2-3/4" |
| Compatible Track | Small |
| Max Opening Range | 13 ft |
| Manufacturer | DuraGates / Comunello Gate |
| CAD Drawing | Download DXF file |
| Data Sheet | Download PDF file |
