Details
E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track - 15' 3" Long IGD-101-AB-11

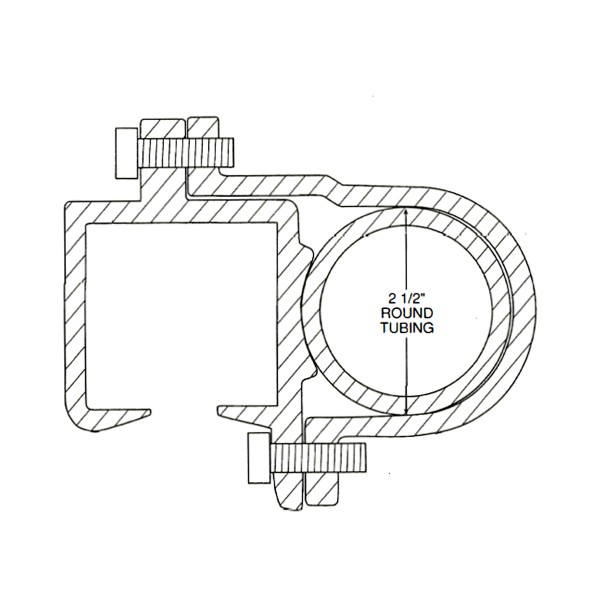

The E/Z Slide Aluminum Round Frame Cantilever Track is a bolt-on component designed for gates requiring a round-profile track interface. At 15 feet 3 inches long, with a 2 1/2" width and 2 3/8" OD, it fits securely onto compatible gate frames for controlled, even sliding. The aluminum body reduces weight without sacrificing strength, making it suitable for extended use in commercial and residential projects. Its bolt-on configuration ensures quick installation and precise alignment during assembly.
Features
- Long-length aluminum track for round frame cantilever gates
- 2 1/2" wide with 2 3/8" outer diameter profile
- Lightweight construction simplifies handling and mounting
- Bolt-on style ensures straightforward attachment
Specifications
- Length: 15 feet 3 inches (4.65 meters)
- Width: 2 1/2 inches
- Outer Diameter: 2 3/8 inches
- Material: Aluminum
- Mounting: Bolt-on
Track Material Comparison
| Material |
Length Range |
Gate Opening / Weight |
Mount |
Best For |
| Galvanized Steel |
6-10 ft |
Up to appox. 26ft / appox. 1,700lb |
Bolt-on or Weld |
Residential & commercial gates |
| Galvanized Steel |
10-20 ft |
Up to appox. 59ft / appox. 4,000lb |
Bolt-on or Weld |
Long/heavy gates or high-traffic areas |
| Stainless Steel |
10-20 ft |
Up to appox. 26ft / appox. 700lb |
Bolt-on |
Coastal or corrosive environments |
| Aluminum |
10-20 ft |
Up to appox. 20ft / appox. 600lb |
Bolt-on |
Lightweight gates, low-maintenance needs |
