E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track - 19' 3" Long - IGD-101-AB-19
Details
E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track - 19' 3" Long - IGD-101-AB-19
The E/Z Slide Aluminum Round Frame Bolt-On Cantilever Gate Track measures 19 feet 3 inches in length and is crafted with a 2 1/2" wide profile and 2 3/8" outer diameter. Built from high-quality aluminum, this track supports large cantilever gates while minimizing long-term maintenance. Its round frame profile allows it to integrate securely with matching frame systems. The bolt-on design makes it a convenient and efficient choice for installers handling mid-length gates.
Features

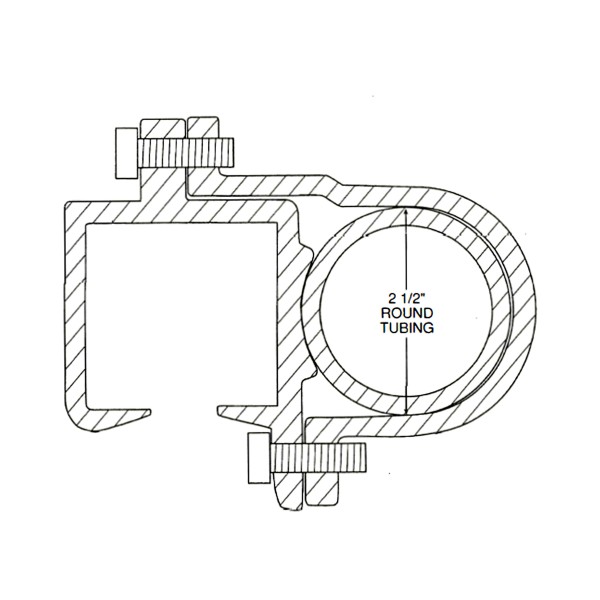

- Designed with a 2 1/2" wide, 2 3/8" OD round frame profile
- Aluminum construction offers lightweight handling and corrosion resistance
- Ideal for mid-size cantilever gate systems
- Bolt-on mounting for straightforward installation
Specifications
- Length: 19 feet 3 inches
- Width: 2 1/2 inches
- Outer Diameter: 2 3/8 inches
- Material: Aluminum
- Mounting Style: Bolt-on
Track Material Comparison
| Material | Length Range | Gate Opening / Weight | Mount | Best For |
|---|---|---|---|---|
| Galvanized Steel | 6-10 ft | Up to appox. 26ft / appox. 1,700lb | Bolt-on or Weld | Residential & commercial gates |
| Galvanized Steel | 10-20 ft | Up to appox. 59ft / appox. 4,000lb | Bolt-on or Weld | Long/heavy gates or high-traffic areas |
| Stainless Steel | 10-20 ft | Up to appox. 26ft / appox. 700lb | Bolt-on | Coastal or corrosive environments |
| Aluminum | 10-20 ft | Up to appox. 20ft / appox. 600lb | Bolt-on | Lightweight gates, low-maintenance needs |
| SKU | IGD-101-AB-19 |
|---|---|
| Part Type | Track |
| Product Type | Track / Track Assembly |
| Material | Aluminum |
| Specification Sheet | Download PDF file |
| Data Sheet | Download PDF file |
