E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track 22' 6" Long - IGD-101-AB-22
Details
E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track 22' 6" Long - IGD-101-AB-22
The E/Z Slide 22 foot 6 inch Aluminum Round Frame Bolt-On Cantilever Gate Track is made for projects requiring extended gate support. It offers a 2 1/2" width and 2 3/8" OD profile, designed to work seamlessly with round gate frames. The aluminum build provides a balance between strength and lightweight handling, streamlining installation without compromising stability. This track is especially suited for larger gates that require dependable motion with minimal deflection.
Features
- Longer format ideal for larger gates and extended openings

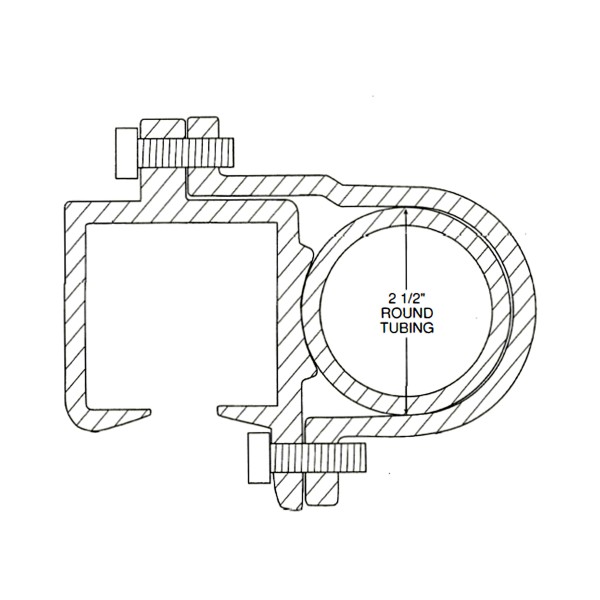

- 2 1/2" wide with 2 3/8" OD round frame design
- Constructed from corrosion-resistant aluminum
- Bolt-on style ensures secure installation and precise alignment
Specifications
- Length: 22 feet 6 inches
- Width: 2 1/2 inches
- Outer Diameter: 2 3/8 inches
- Material: Aluminum
- Mounting Style: Bolt-on
Track Material Comparison
| Material | Length Range | Gate Opening / Weight | Mount | Best For |
|---|---|---|---|---|
| Galvanized Steel | 6-10 ft | Up to appox. 26ft / appox. 1,700lb | Bolt-on or Weld | Residential & commercial gates |
| Galvanized Steel | 10-20 ft | Up to appox. 59ft / appox. 4,000lb | Bolt-on or Weld | Long/heavy gates or high-traffic areas |
| Stainless Steel | 10-20 ft | Up to appox. 26ft / appox. 700lb | Bolt-on | Coastal or corrosive environments |
| Aluminum | 10-20 ft | Up to appox. 20ft / appox. 600lb | Bolt-on | Lightweight gates, low-maintenance needs |
| SKU | IGD-101-AB-22 |
|---|---|
| Part Type | Track |
| Product Type | Track / Track Assembly |
| Material | Aluminum |
| Specification Sheet | Download PDF file |
| Data Sheet | Download PDF file |
