E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track 30' 6" Long - IGD-101-AB-30

The 30' 6" E/Z Slide Aluminum Round Frame Cantilever Gate Track, featuring a 2 1/2" width and 2 3/8" OD, delivers heavy-duty support and smooth operation, combining durability and ease of installation for extensive gate systems.
Part Number: IGD-101-AB-30
$1,778.76 each
$1,778.76 each
OR

Details

E/Z Slide Aluminum Round Frame Bolt on 2 1/2" ( 2 3/8" OD) Cantilever Gate Track 30' 6" Long - IGD-101-AB-30

Measuring an impressive 30 feet 6 inches, the E/Z Slide Aluminum Round Frame Bolt-On Cantilever Gate Track is a top choice for expansive gate systems. With a profile of 2 1/2" wide and 2 3/8" outer diameter, it accommodates round-frame gates with exacting fit. The track's aluminum construction maintains performance in harsh outdoor environments while remaining light enough for manageable installation. Designed for longevity and steady operation, it is an ideal solution for long-span gates requiring consistent track support.

Features

  • Designed for round-frame gates with large span requirements

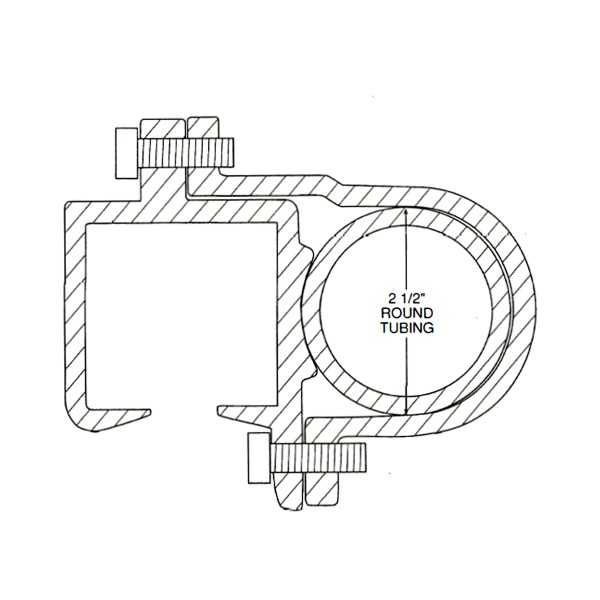

  • 2 1/2" width and 2 3/8" OD for precise bolt-on fitting
  • Aluminum construction resists rust and reduces overall gate weight
  • Bolt-on design enables easy installation and firm placement

Specifications

  • Length: 30 feet 6 inches
  • Width: 2 1/2 inches
  • Outer Diameter: 2 3/8 inches
  • Material: Aluminum
  • Mounting Style: Bolt-on

Track Material Comparison

Material Length Range Gate Opening / Weight Mount Best For
Galvanized Steel 6-10 ft Up to appox. 26ft / appox. 1,700lb Bolt-on or Weld Residential & commercial gates
Galvanized Steel 10-20 ft Up to appox. 59ft / appox. 4,000lb Bolt-on or Weld Long/heavy gates or high-traffic areas
Stainless Steel 10-20 ft Up to appox. 26ft / appox. 700lb Bolt-on Coastal or corrosive environments
Aluminum 10-20 ft Up to appox. 20ft / appox. 600lb Bolt-on Lightweight gates, low-maintenance needs
Prefer to Call? (888) 378-1291

Questions about part number IGD-101-AB-30?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU IGD-101-AB-30
Part Type Track
Product Type Track / Track Assembly
Material Aluminum
Specification Sheet Download PDF file
Data Sheet Download PDF file
