Details

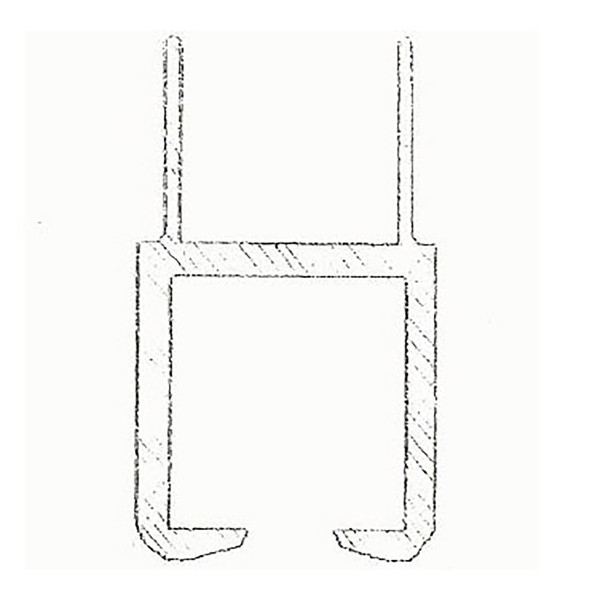

E/Z Slide Aluminum Square Bottom Track Assembly for 2" x 2" Cantilever Gate Track - 13' 3" - IGD-BT-100-13
The E/Z Slide Aluminum Square Bottom Track Assembly, measuring 13 feet 3 inches, is made for use with 2" x 2" cantilever gate tracks. Its square profile allows for precise integration with the gate carriage system, promoting reliable sliding action. Lightweight yet strong, the aluminum construction provides weather resistance and simplified handling during installation. This track assembly supports long-lasting gate function in both residential and commercial contexts.
Features
- Supports 2" x 2" cantilever gate tracks
- Square profile for accurate tracking and alignment
- Made from lightweight aluminum
- Built for smooth movement and minimal wear
Specifications
- Length: 13 feet 3 inches
- Material: Aluminum
- Profile: 2" x 2"
- Mounting Type: Bottom assembly
Track Material Comparison
| Material |
Length Range |
Gate Opening / Weight |
Mount |
Best For |
| Galvanized Steel |
6-10 ft |
Up to appox. 26ft / appox. 1,700lb |
Bolt-on or Weld |
Residential & commercial gates |
| Galvanized Steel |
10-20 ft |
Up to appox. 59ft / appox. 4,000lb |
Bolt-on or Weld |
Long/heavy gates or high-traffic areas |
| Stainless Steel |
10-20 ft |
Up to appox. 26ft / appox. 700lb |
Bolt-on |
Coastal or corrosive environments |
| Aluminum |
10-20 ft |
Up to appox. 20ft / appox. 600lb |
Bolt-on |
Lightweight gates, low-maintenance needs |
