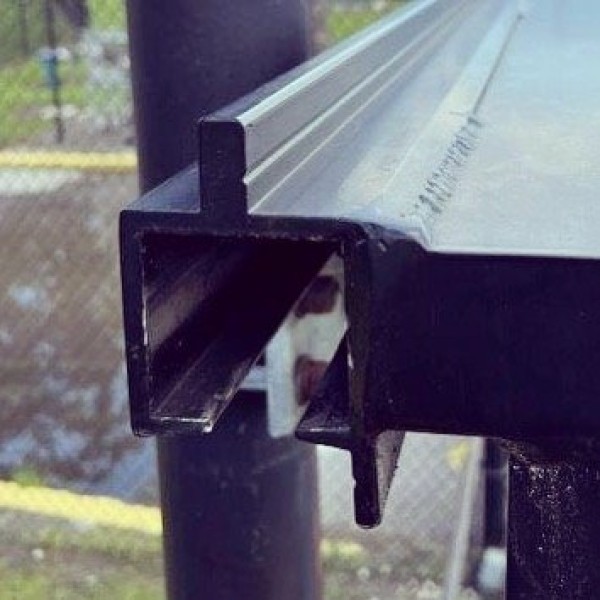

E/Z Slide Aluminum Square Frame Bolt on 2" x 2" Cantilever Gate Track - 22' 6" - IGD-102-AD-22
Details
E/Z Slide Aluminum Square Frame Bolt on 2" x 2" Cantilever Gate Track - 22' 6" - IGD-102-AD-22
The E/Z Slide 22 foot 6 inch Aluminum Square Frame Bolt-On Track is ideal for longer-span gates where structural reinforcement and smooth movement are a priority. Featuring a 2" x 2" profile, it provides a uniform fit for compatible square-frame gates while maintaining a balanced weight-to-strength ratio. Aluminum composition helps protect against corrosion and makes the track manageable during installation. It's a great choice for high-traffic or heavy-duty gate projects where longevity matters.
Features
- Long-span design for large gate setups
- Square profile enhances track-to-frame contact
- Aluminum construction resists environmental wear
- Bolt-on configuration allows fast and secure installation
Specifications
- Length: 22 feet 6 inches

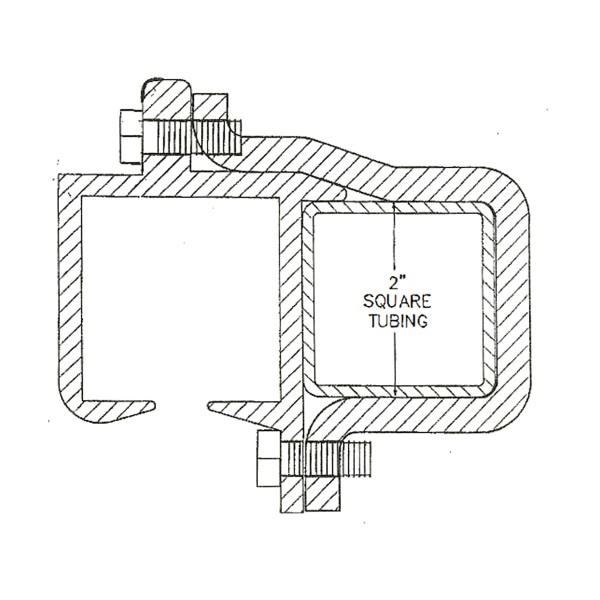

- Profile: 2 inches x 2 inches
- Material: Aluminum
- Mounting Style: Bolt-on
Track Material Comparison
| Material | Length Range | Gate Opening / Weight | Mount | Best For |
|---|---|---|---|---|
| Galvanized Steel | 6-10 ft | Up to appox. 26ft / appox. 1,700lb | Bolt-on or Weld | Residential & commercial gates |
| Galvanized Steel | 10-20 ft | Up to appox. 59ft / appox. 4,000lb | Bolt-on or Weld | Long/heavy gates or high-traffic areas |
| Stainless Steel | 10-20 ft | Up to appox. 26ft / appox. 700lb | Bolt-on | Coastal or corrosive environments |
| Aluminum | 10-20 ft | Up to appox. 20ft / appox. 600lb | Bolt-on | Lightweight gates, low-maintenance needs |
| SKU | IGD-102-AD-22 |
|---|---|
| Part Type | Track |
| Product Type | Track / Track Assembly |
| Length of Track | 22' 6" |
| H x W | 2" x 2" |
| Material | Aluminum |
| Mount Type | Bolt-On |
| Specification Sheet | Download PDF file |
| Data Sheet | Download PDF file |
