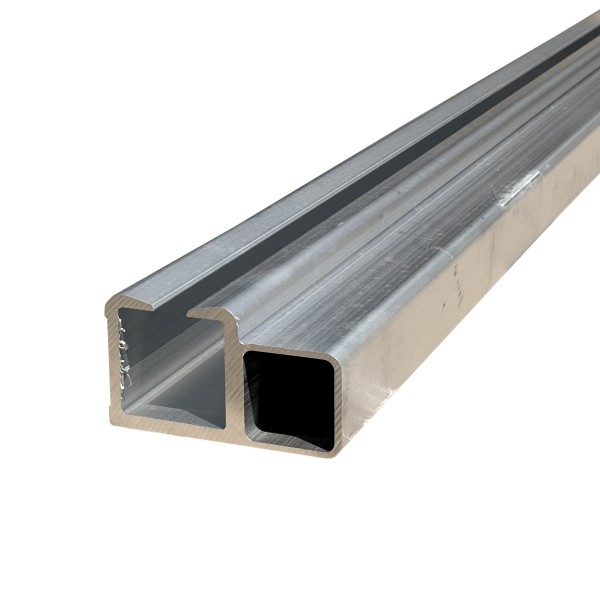

E/Z Slide Aluminum Square Weld in Place Frame and Track for Overhead Applications - 15' 3" - IGD-104-TR-15

The 15' 3" E/Z Slide Aluminum Square Weld in Place Frame and Track for Overhead Applications combines high-quality aluminum construction with a square profile for robust support and reliable performance in demanding overhead gate setups.
Part Number: IGD-104-TR-15
$1,137.24 each
$1,137.24 each
OR

Details

E/Z Slide Aluminum Square Weld in Place Frame and Track for Overhead Applications - 15' 3" - IGD-104-TR-15

The E/Z Slide Aluminum Square Weld-in Place Track, measuring 15 feet 3 inches, is tailored for demanding overhead gate installations. It features a square frame design that enhances alignment and support for consistent gate performance. Constructed from high-quality aluminum, the track offers strength while remaining light enough for manageable installation. The weld-in-place system adds extra stability, making it an excellent option for permanent overhead gate builds.

Features

  • Weld-in installation ensures a stable gate framework
  • Square profile maintains alignment under movement
  • Aluminum construction resists corrosion and wear
  • Optimized for overhead gate systems

Specifications

  • Length: 15 feet 3 inches
  • Material: Aluminum
  • Frame Profile: Square
  • Installation: Weld-in-place

Track Material Comparison

Material Length Range Gate Opening / Weight Mount Best For
Galvanized Steel 6-10 ft Up to appox. 26ft / appox. 1,700lb Bolt-on or Weld Residential & commercial gates
Galvanized Steel 10-20 ft Up to appox. 59ft / appox. 4,000lb Bolt-on or Weld Long/heavy gates or high-traffic areas
Stainless Steel 10-20 ft Up to appox. 26ft / appox. 700lb Bolt-on Coastal or corrosive environments
Aluminum 10-20 ft Up to appox. 20ft / appox. 600lb Bolt-on Lightweight gates, low-maintenance needs
Prefer to Call? (888) 378-1291

Questions about part number IGD-104-TR-15?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU IGD-104-TR-15
Part Type Track
Product Type Track / Track Assembly
Material Aluminum
Mount Type Weld-On
Specification Sheet Download PDF file
