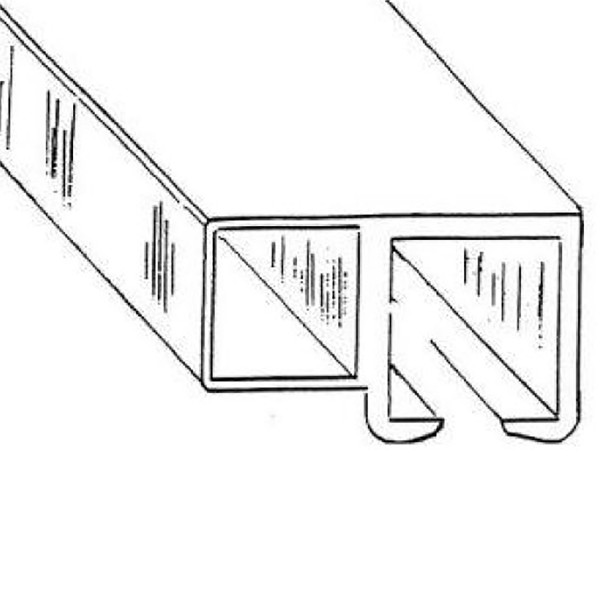

E/Z Slide Aluminum Square Weld in Place Frame and Track for Overhead Applications - 22' 6" - IGD-104-TR-22
This 22 foot 6 inch E/Z Slide Aluminum Square Weld-in Place Track is built for oversized overhead gates requiring maximum length and support. The square aluminum frame ensures even weight distribution and structural integrity, especially important in high-cycle environments. Weld-in-place installation promotes permanent fixture and eliminates shifting during gate operation. Its lightweight yet strong build helps resist wear while minimizing stress on the gate system.
Features
- Long-format track for large gate spans
- Weld-in square design ensures fixed alignment
- Aluminum offers corrosion resistance and strength
- Designed for overhead gate applications
Specifications
- Length: 22 feet 6 inches
- Material: Aluminum
- Frame Profile: Square
- Installation: Weld-in-place
Track Material Comparison
| Material |
Length Range |
Gate Opening / Weight |
Mount |
Best For |
| Galvanized Steel |
6-10 ft |
Up to appox. 26ft / appox. 1,700lb |
Bolt-on or Weld |
Residential & commercial gates |
| Galvanized Steel |
10-20 ft |
Up to appox. 59ft / appox. 4,000lb |
Bolt-on or Weld |
Long/heavy gates or high-traffic areas |
| Stainless Steel |
10-20 ft |
Up to appox. 26ft / appox. 700lb |
Bolt-on |
Coastal or corrosive environments |
| Aluminum |
10-20 ft |
Up to appox. 20ft / appox. 600lb |
Bolt-on |
Lightweight gates, low-maintenance needs |
