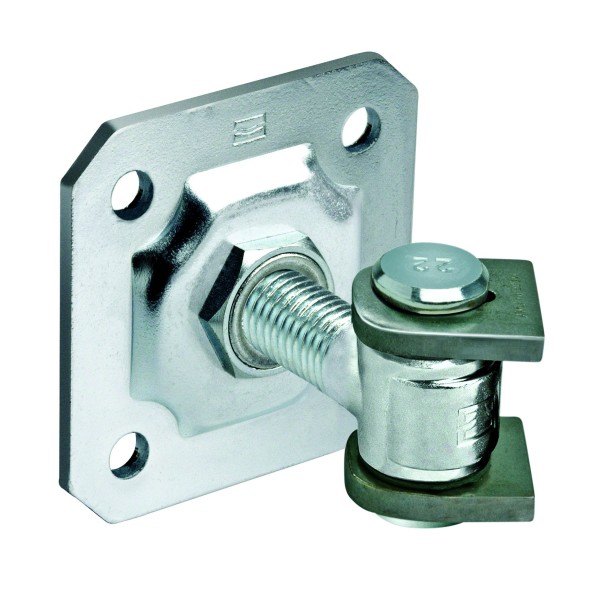

2 1/2" DuraGates Steel Hinge with Wings, 4" Sq. Bolt-On Backplate, and Adjustable Nut - 163-M22

Heavy gate leaves pivot smoothly on a steel hinge engineered with side wings and a 4" square bolt-on backplate for maximum post contact. The M22 threaded hardware and adjustable nut provide vertical and horizontal fine-tuning after the initial mount, compensating for concrete pad drift or post lean. Welded wing plates add gusset strength to the knuckle, resisting the spread that afflicts non-reinforced hinges under cantilever loads. A corrosion-protective finish seals the steel against moisture, preserving the crisp action automated operators require. Commercial installers specify this hinge when the gate is wide, the post is substantial, and adjustment headroom is essential.

Features

• Steel hinge with side wings for reinforcement
• 4" square bolt-on backplate for solid post anchoring
• M22 adjustable nut for post-install alignment
• Resists knuckle spread under cantilever loads
• Corrosion-protected finish for outdoor durability

Specifications

• SKU: 163-M22
• Material: Steel
• Backplate: 4" Square Bolt-On
• Adjustment: M22 Adjustable Nut
• Application: Heavy commercial/industrial gates
