Duragates 9'-10"Stainless Steel V-Track (2-1/8"W x 5/64" Thick) - 293I-9.84FT
Details
Duragates 9'-10"Stainless Steel V-Track (2-1/8"W x 5/64" Thick) - 293I-9.84FT

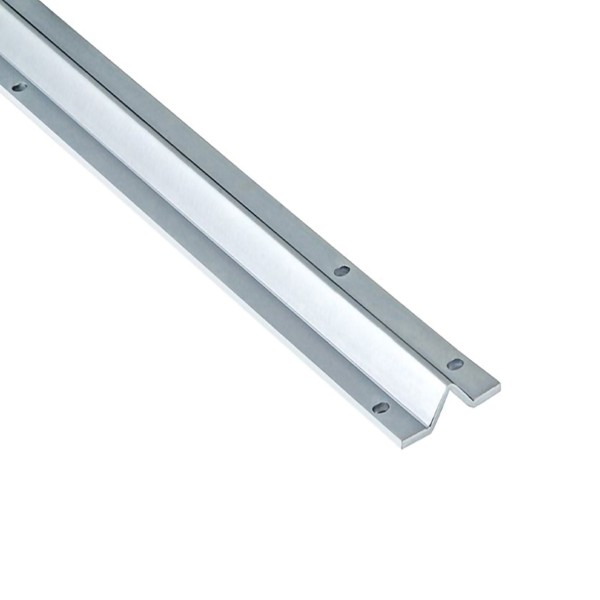

Continuous V-shaped guidance arrives in a 9' 10" stainless steel track measuring 2 1/8" wide by 5/64" thick. The narrow profile minimizes stile intrusion while providing adequate rail depth for trolley wheel engagement on automated cantilever gates. Stainless alloy resists the scaling and pitting that destroy carbon steel in salt-air or chemical environments. One-piece spans eliminate field joints that catch debris and cause wheel hop. Integrators select this track when corrosion immunity and compact stile mounting must coexist in the same specification.
Features
- 9'10" stainless steel V-track
- Dimensions: 2 1/8"W x 5/64" Thick
- Corrosion-resistant for harsh environments
- Narrow profile minimizes intrusion
- Single-piece span reduces joints
Specifications
- SKU: 293I-9.84FT
- Material: Stainless Steel
- Length: 9'10"
- Width: 2 1/8"
- Thickness: 5/64"
| SKU | 293I-9.84FT |
|---|---|
| Product Type | Track / Track Assembly |
| Length of Track | 9' 10" |
| Dimensions | 2 1/8" x 2 1/8" |
| Material | Stainless Steel |
| Mount Type | Bolt-On |
| Max Gate Weight | 1200 lbs |
| Manufacturer | DuraGates / Comunello Gate |
| Specifications Sheet | Download PDF file |
