DuraGates Pre-Made Mini-Cantilever Gate Kit With 19' 8" Track For Lightweight Gates Up To 16' Long And Up To 550 lbs - CGA-KIT150-6M
Details
DuraGates Pre-Made Mini-Cantilever Gate Kit With 19' 8" Track For Lightweight Gates Up To 16' Long And Up To 550 lbs - CGA-KIT150-6M
The DuraGates Cantilever Gate Hardware Kit is designed for lightweight gates within an opening range of 16ft with a maximum gate weight of 550lbs, respectively. This kit, designed and manufactured by DuraGates, comprises high-quality, galvanized steel components that will hold up in any weather conditions. The Cantilever Gate Hardware Kit includes two galvanized steel carriages, one galvanized steel track, one end wheel for the track, one bottom end cup for the track, and one top guide with roller covers. The kit can be used with any gate material to be either mechanically attached or welded. The overall simple and sleek design of the enclosed roller system not only complies with the ASTM F2200 and UL325 Standards but also makes this system require little to no cleaning or maintenance. Ideal for snowy, icy, and rainy areas, the enclosed track is protected from the elements guaranteeing seamless operation.
Features:
- Low Maintenance Kit For Lightweight Gates
- For Gates Up To 550lbs and Up To 16' Long
- Economical Kit Designed For Saving Time And Money
- Designed To Reliably Function Even In Snowy, Icy, Or Rainy Areas
- Enclosed Roller System Complies With Safety Standards ASTM F2200 & UL325
- High-Quality Kit Components, Tracks And Rollers, Guarantee Smooth Operation
- Easy To Install, Slide The Gate On Mounted Carriages And Attach The End Wheels
- Can Be Used With Any Gate Material, And Attached Mechanically Or Welded On Track
- Hardware Is Barely Visible, Sleek And Simple Design, No Wires Or Overhead Tracks
- Rollers Are Enclosed In The Track, Eliminating The Need To Clean Or Maintenance
- Protects Expensive Gate Operators By Reducing The Overall Weight Load On The Gate Motor

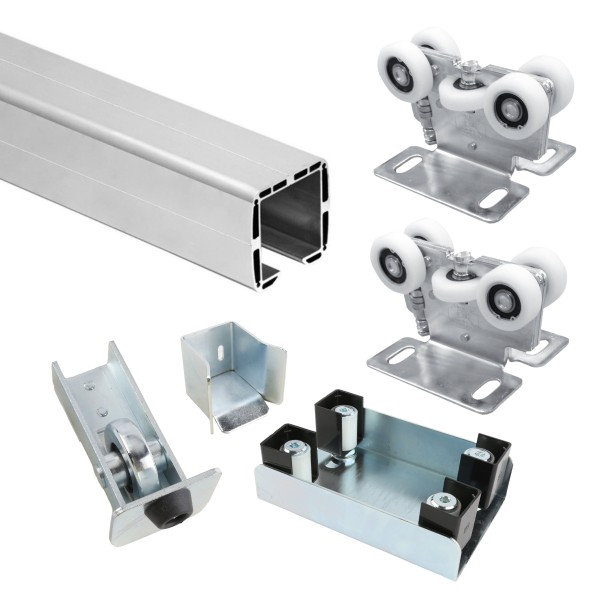

Kit Includes:
- (2) CGA-150.5M Galvanized Carriage for Aluminum Track, 5 Nylon Wheels
- (1) CGA-345M-19.68FT Aluminum Track
- (1) CGA-347M End wheel for track
- (1) CGA-346M Bottom end cup for track
- (1) 255-220-C Top Guide with roller covers
Specifications:
- Part: Hardware Kit
- Max Gate Weight: 550 lbs
- Max Opening Range: 16'
- Material: Aluminum
- Gate Type: Cantilever Sliding Gate
| SKU | CGA-KIT150-6M |
|---|---|
| Kit Type | Pre-Made Gate Kit |
| Max Opening Range | 16 ft |
| Max Gate Weight | 550 lbs |
| Manufacturer | DuraGates / Comunello Gate |
