Browse by Gate Size


Galvanized Steel Track Components
Model
Opening & Weight Range 30 ft. Up To 7700 lbs
65 ft. Up To 4400 lbs
16 ft. Up To 4000 lbs
60 ft. Up To 1800 lbs
10 ft. Up To 1700 lbs
26 ft. Up To 1000 lbs
8 ft. Up To 1300 lbs
19 ft. Up To 800 lbs
8 ft. Up To 900 lbs
14 ft. Up To 500 lbs
8 ft. Up To 660 lbs
13 ft. Up To 330 lbs

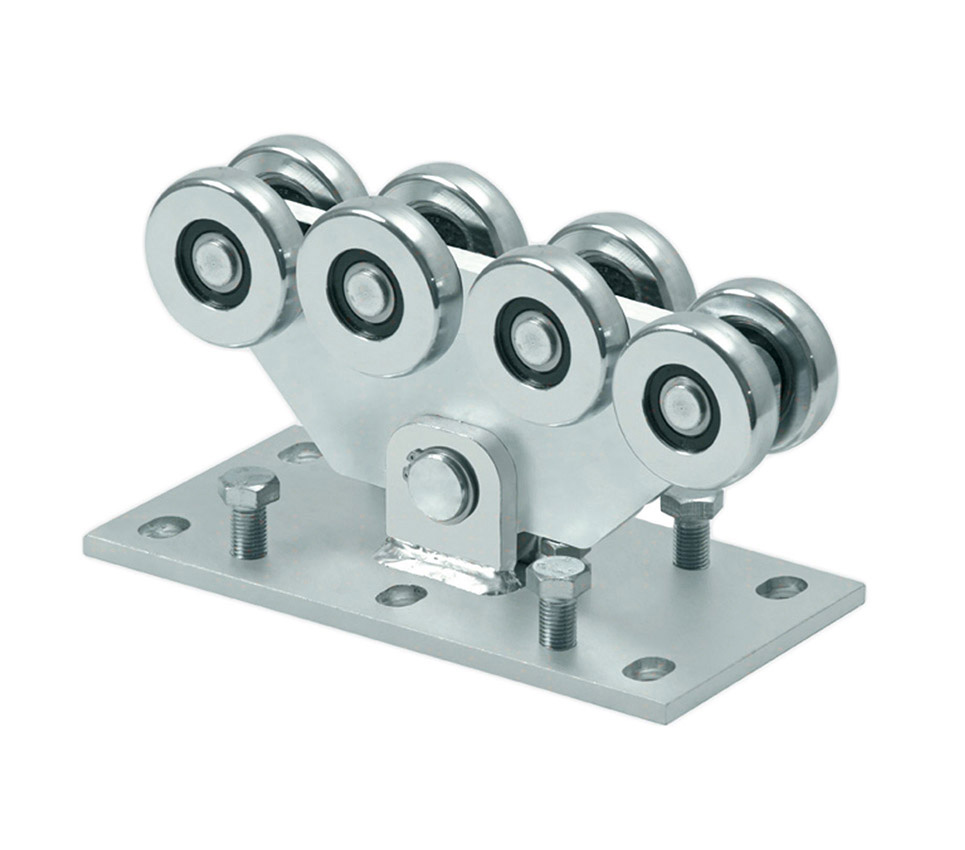

Carriages

XL Carriage Monobloc Body

Large Carriage Monobloc Body

Medium Carriage Monobloc Body

Medium Carriage Multi-Plate Body

Small Carriage Multi-Plate Body

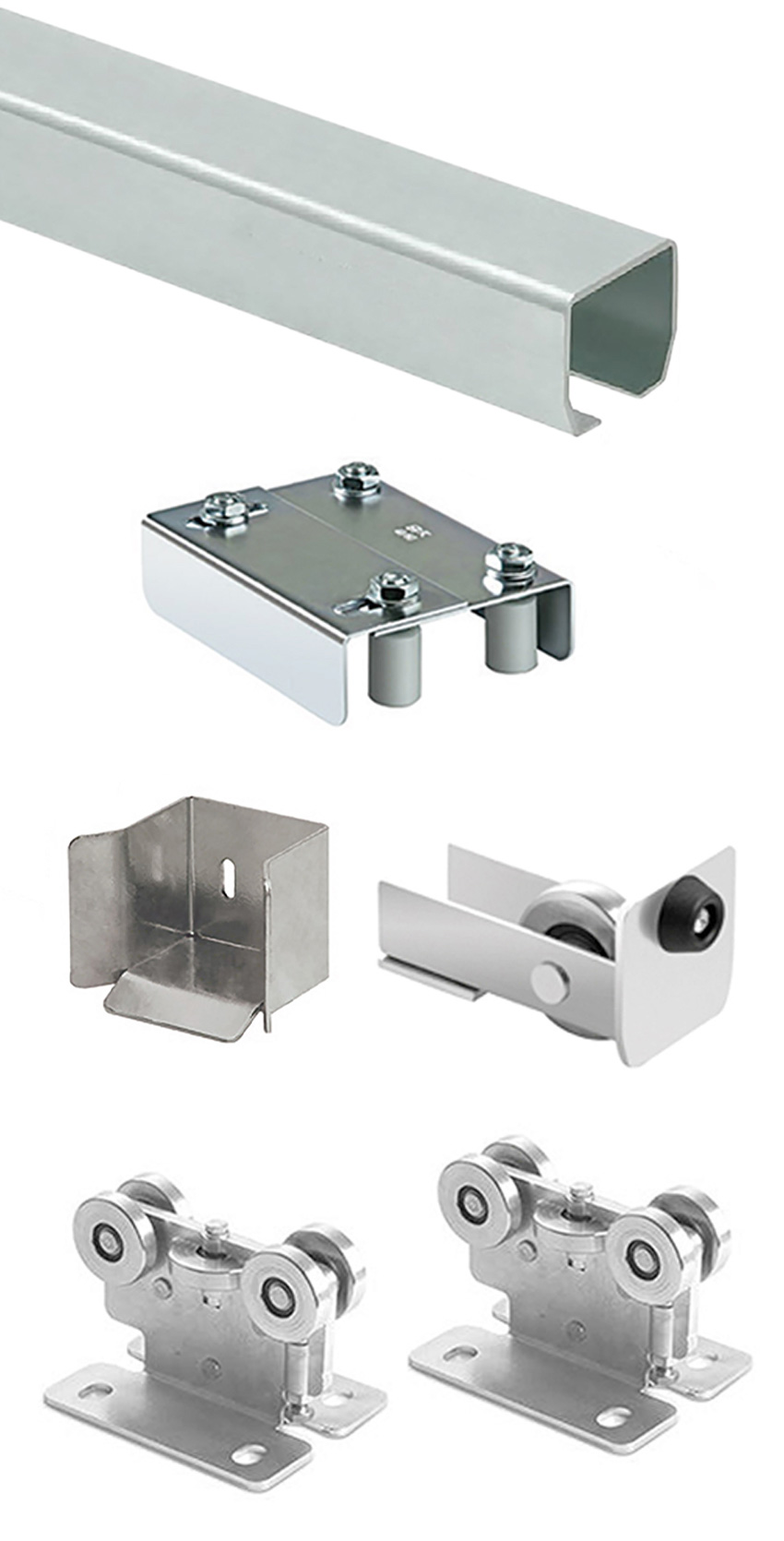

Included In Kit:


(2) CGS-150.5M Mini Carriages
With Multi-Plate Body

(1) CGS-245M Small 20' Track

(1) CGS-347M End Wheel

(1) CGS-346M Bottom End Cup

(1) 255-220 Top Guide Roller Covers

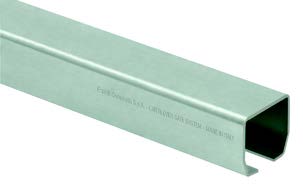

Tracks Available in 9'-10" or 19'-8"

Extra Large
7-1/4" x 6-1/2"
Raw Track

Large
5-1/2" x 5-1/2"
Galvanized Track

Medium
4" x 3-1/2"
Galvanized Track

Medium
4" x 3-1/2"
Galvanized Track

Small
2-3/4" x 2-3/4"
Galvanized Track
Accessories

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

Bottom End Cup For Track

Bottom End Cup For Track

Bottom End Cup For Track

Bottom End Cup For Track

Bottom End Cup For Track

Gate Receiver
3-3/8" to 4-1/2"

Gate Receiver
2" to 3"

Gate Receiver
2" to 3"

Gate Receiver
2" to 3"

Gate Receiver
2" to 3"

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket
Anchoring & Installation

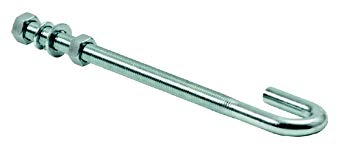

Threaded Tie Rod, J-Bolt M20 x 15"

Threaded Tie Rod, J-Bolt M20 x 15"

Threaded Tie Rod, J-Bolt M16 x 15"

Threaded Tie Rod, J-Bolt M16 x 15"

Threaded Tie Rod, J-Bolt M16 x 15"

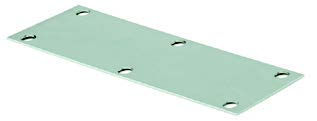

Foundation Plate

Foundation Plate

Foundation Plate



Aluminum Track Components Stainless Steel Track Components
Model
Opening & Weight Range 20 ft. Up To 700 lbs
30 ft. Up To 400 lbs
10 ft. Up To 550 lbs
16 ft. Up To 300 lbs
13 ft. Up To 700 lbs
26 ft. Up To 400 lbs
Carriages

Large Carriage Monobloc Body
Nylon Wheels

Small Carriage Monobloc Body
Nylon Wheels

Medium Carriage Monobloc Body
Steel Wheels
Tracks Available in 9'-10" or 19'-8"

Large
4-3/16" x 4-1/32"
Aluminum Track

Small
3-1/4" x 3-1/8"
Aluminum Track

Medium
4" x 3-1/2"
Stainless Steel Track
Accessories

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

End Wheel For UL325 Compliance

Bottom End Cup For Track

Bottom End Cup For Track

Bottom End Cup For Track

Gate Receiver
2" to 3"

Gate Receiver
2" to 3"

Gate Receiver
2" to 3"

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket

Adjustable Wall Mounting Bracket
Anchoring & Installation

Threaded Tie Rod, J-Bolt M16 x 15"

Threaded Tie Rod, J-Bolt M16 x 15"

Threaded Tie Rod, J-Bolt M16 x 15"

Foundation Plate

Foundation Plate
